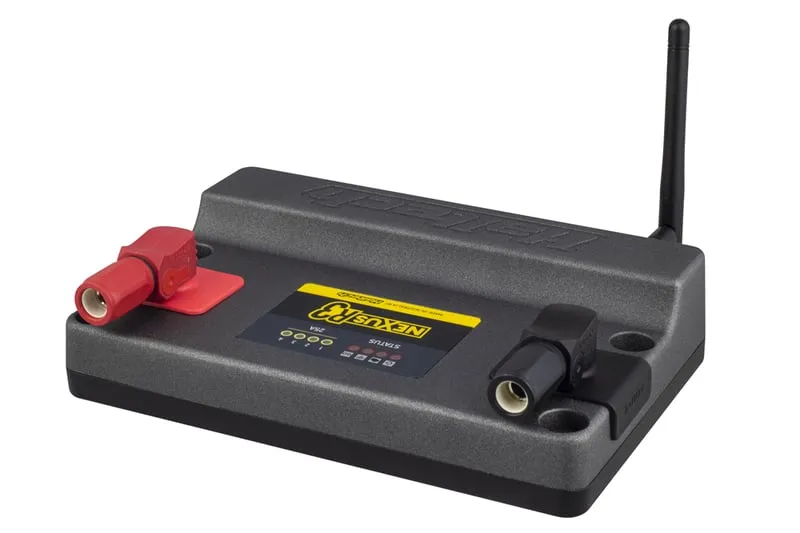

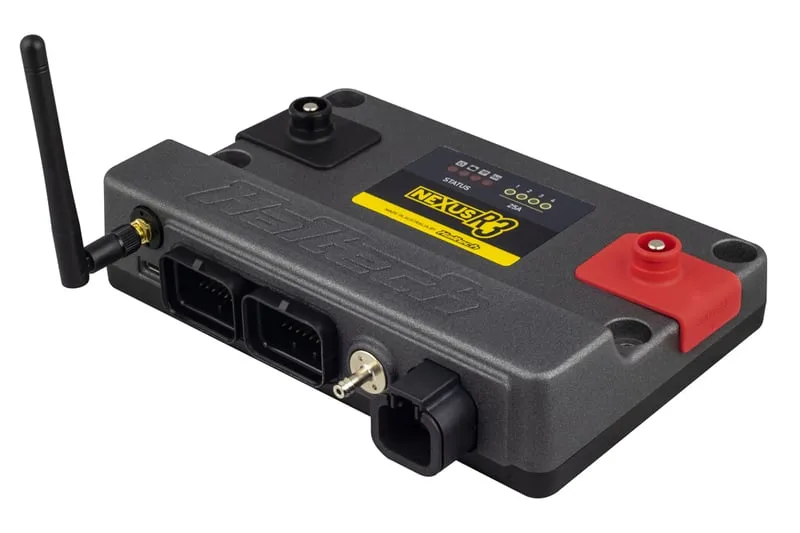

Haltech Nexus R3 VCU — ECU and Wiring Packages

Engine management, power distribution, logging and wideband control in one VCU, for applications up to eight cylinders or four rotors. Select the required wiring package.

Part Number: HT-193000

  • Included
Add to cart
Price
$ 3,595.00 $ 3,595.00

Product Info

The Nexus R3 combines engine control with onboard power distribution, a wideband controller and data logging. Haltech lists support for up to eight cylinders or four rotors, subject to the complete engine and wiring configuration.

Choose HT-193000 VCU, HT-193100 VCU with loose plug-and-pin set, or HT-193200 VCU with 2.5 m universal wire-in harness. A connector set is for custom wiring; it is not a vehicle-specific plug-in adaptor.

The R3 has eight injector drivers, eight ignition channels, four 25 A power outputs and 128 MB logging memory. Wideband sensors, vehicle-specific accessories, installation and calibration are separate.
