Haltech Nexus R5 VCU — ECU and Wiring Packages

A VCU combining engine management, power distribution, dual wideband control and logging, for applications up to twelve cylinders or six rotors.

Part Number: HT-195000

  • Included
Add to cart
Price
$ 6,049.00 $ 6,049.00

Product Info

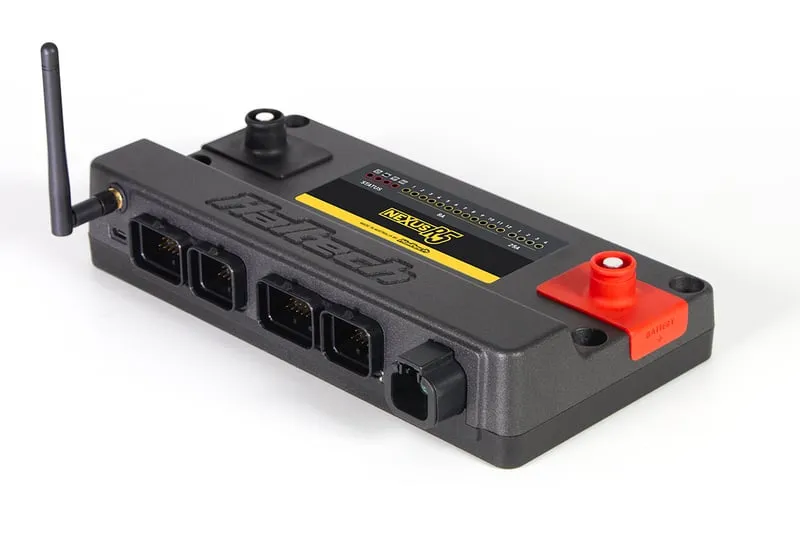

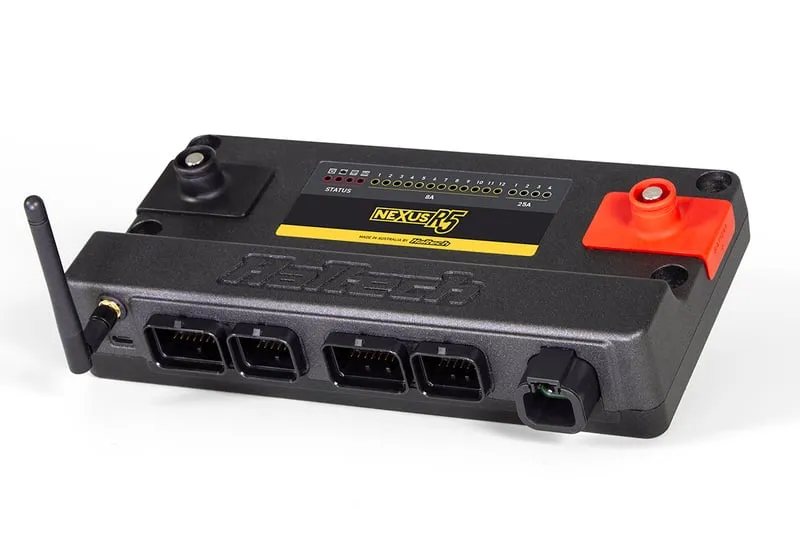

The Nexus R5 brings engine control, power distribution and dual wideband control into one unit. Haltech lists applications up to twelve cylinders or six rotors, with eighteen injector drivers and twelve ignition channels.

Choose HT-195000 VCU, HT-195100 VCU with loose plug-and-pin set, HT-195200 with 2.5 m universal harness, or HT-195201 with 5 m universal harness. Connector sets require custom wiring and are not vehicle-specific plug-in adaptors.

The R5 provides 512 MB logging memory, three CAN ports, four 25 A power channels and twelve 8 A high-side channels. Sensors, installation, calibration and vehicle-specific accessories are separate.
