Haltech Nexus S3 ECU — Universal Wiring Packages

Nexus engine control for applications up to eight cylinders or four rotors, with onboard logging, wideband control and universal wiring-package choices.

Part Number: HT-213000

  • Included
Add to cart
Price
$ 3,175.00 $ 3,175.00

Product Info

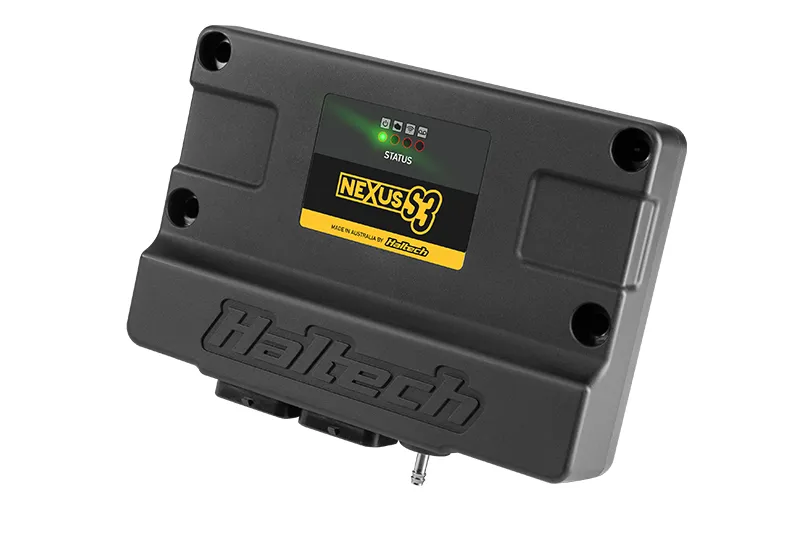

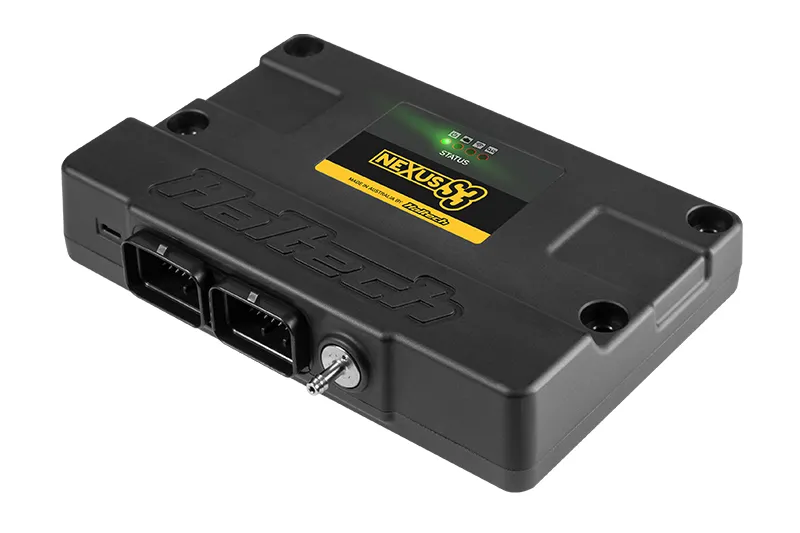

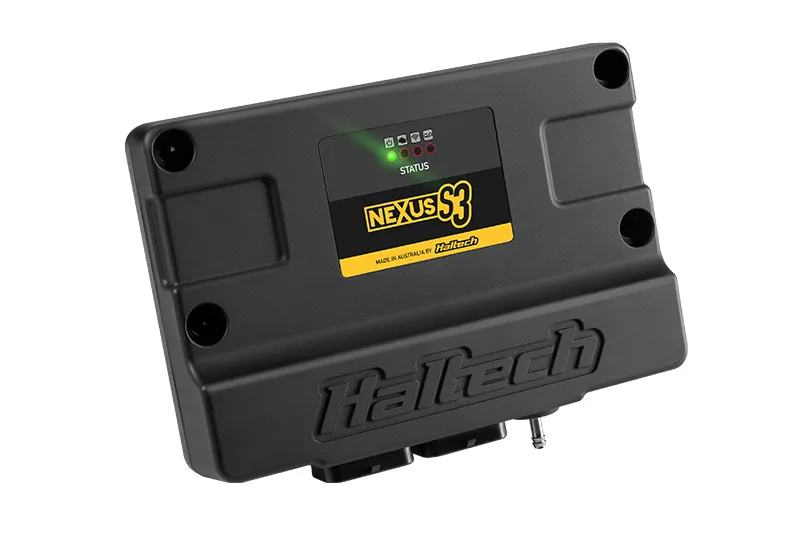

The Nexus S3 provides eight injector drivers and eight ignition channels for supported applications up to eight cylinders or four rotors. Its integrated wideband controller, 4-bar MAP sensor and 128 MB logging memory support a configurable engine-management installation.

Choose HT-213000 ECU only, HT-213100 ECU with plug-and-pin set, or HT-213200 ECU with 2.5 m universal wire-in harness. The connector set supplies loose plugs and pins for custom wiring.

The S3 includes two CAN ports and electronic-throttle-capable outputs. Confirm the engine, sensors, wiring and calibration requirements with your installer. Wideband sensors and vehicle-specific accessories are separate.
