Haltech Sensor Temperature - Air Temp

Haltech Sensor Temperature - Air Temp

Haltech air temperature sensors in four thread options: M14 x 1.5, 3/8 NPT, 1/4 NPT or 1/8 NPT. Each includes its matching electrical connector and has a maximum reading of 127°C (260°F). Select the required thread; connector designs differ.

Part Number: HT-010206

  • Air Temp Sensor Type
Add to cart
Price
$ 67.00 $ 67.00

Product Info

Choose the sensor thread to match your installation: HT-010200 uses M14 x 1.5, HT-010202 uses 3/8 NPT with 18 TPI, HT-010204 uses 1/4 NPT and HT-010206 uses 1/8 NPT. Haltech specifically lists the 1/4 NPT HT-010204 for the Nissan Z32 300ZX intake.

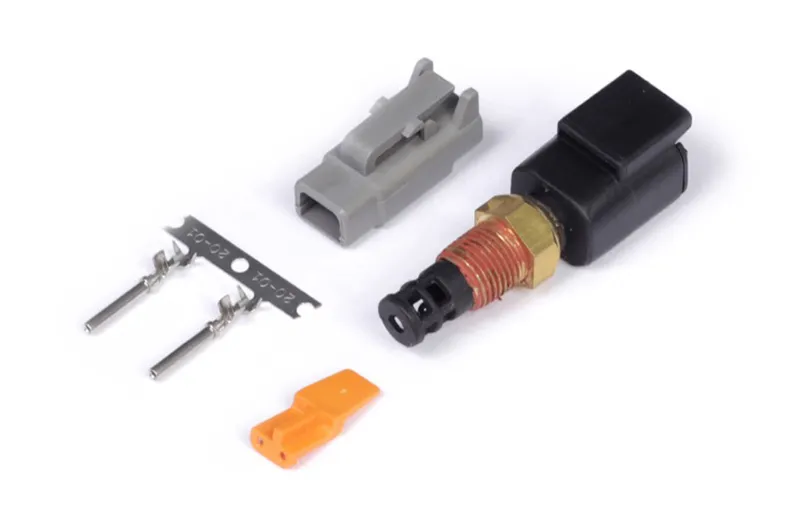

The M14 x 1.5, 3/8 NPT and 1/4 NPT versions include a matching Delphi plug and pins. The 1/8 NPT version instead includes a matching male Deutsch DTM-2 connector, HT-031000. All four have a maximum temperature reading of 127°C (260°F). Confirm the required thread, connector and sensor calibration before installation. Weld-in fittings are not included.
